Specific Requirements for Recessed Light Fittings and Their Auxiliary Equipment

Specific requirements for recessed light fittings and their auxiliary equipment

We should all be aware of the significant new changes to the ECP-54 “Electrical Code of Practice” relating to insulation and recessed light fittings.

With higher mandatory levels of insulation required by New Zealand building code, to create more thermally efficient insulated homes and with the use of energy efficient recessed light fittings we can all benefit.

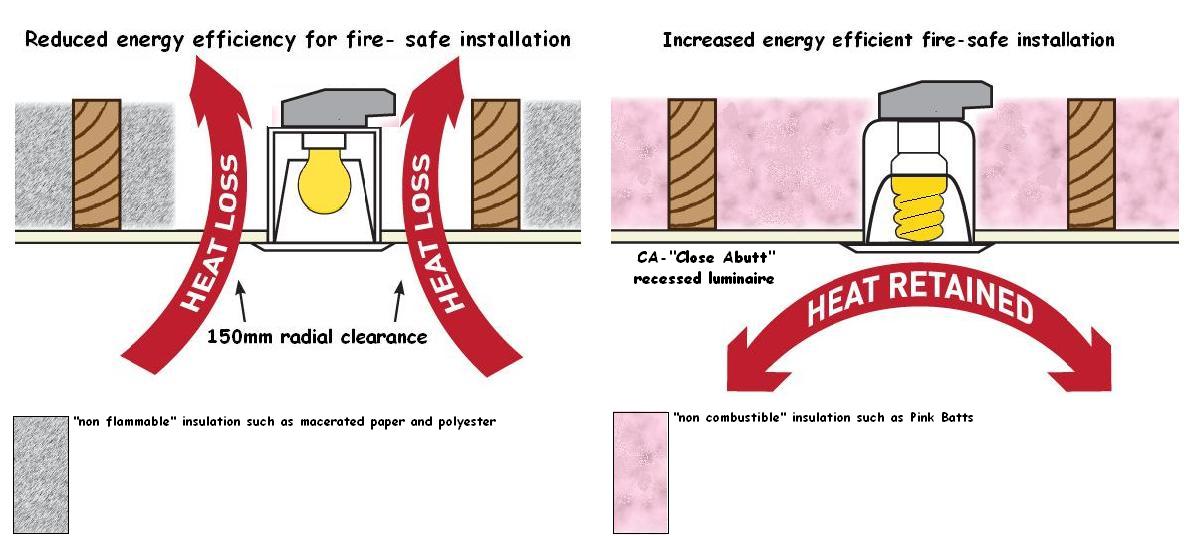

PROBLEM The use of “unsafe” recessed lights with combustible “non flammable” insulation material requires a larger clearance between the insulation and the recessed light as pictured in diagram on left. This results in heat loss and making it more costly to heat the home. Unrated recessed lights that do not have a built in thermal cut out are not deemed a fail safe option.

SOLUTION By using a non combustible insulation like Pink Batts and a CA-“Close Abutted” rated recessed light fitting with thermal cut out. This allows the insulation to be abutted directly against the recessed fitting reducing heat loss and making it more efficient to heat your home as pictured in diagram above.

MOISTURE TRANSFER CLASSES

(O) Open     “Occupied Space” and the “Concealed Space” is greater than 15% of the area of the hole cut in the ceiling into which the light fitting is fitted.

(R) Restricted      “Occupied space” and the “Concealed Space” is greater than 5% but not more than15% of the area of the hole cut in the ceiling into which the light fitting is fitted.

(C) Closed      “Occupied Space” and the “Concealed Space” is not more than 5% of the area ofthe hole cut in the ceiling into which the light fitting is fitted.

(FR) Fire Resistant Rated      “Occupied Space” and the “Concealed Space” and does not compromise the fire resistance rating of the space.

(AR) Acoustic      “Occupied Space” and the “Concealed Space” and does not compromise the acoustic rating of the space.

THERMAL INSULATION CLEARANCE CLASSES

(A) Abutted      The hole made in the insulation material is of the same size as the hole made in the ceiling surface for the light.

(R) Standard 0.1m      The hole made in the insulation material is approx 0.1m (100mm) larger on each side of the fitting than the size of the hole made in the ceiling surface for the light.

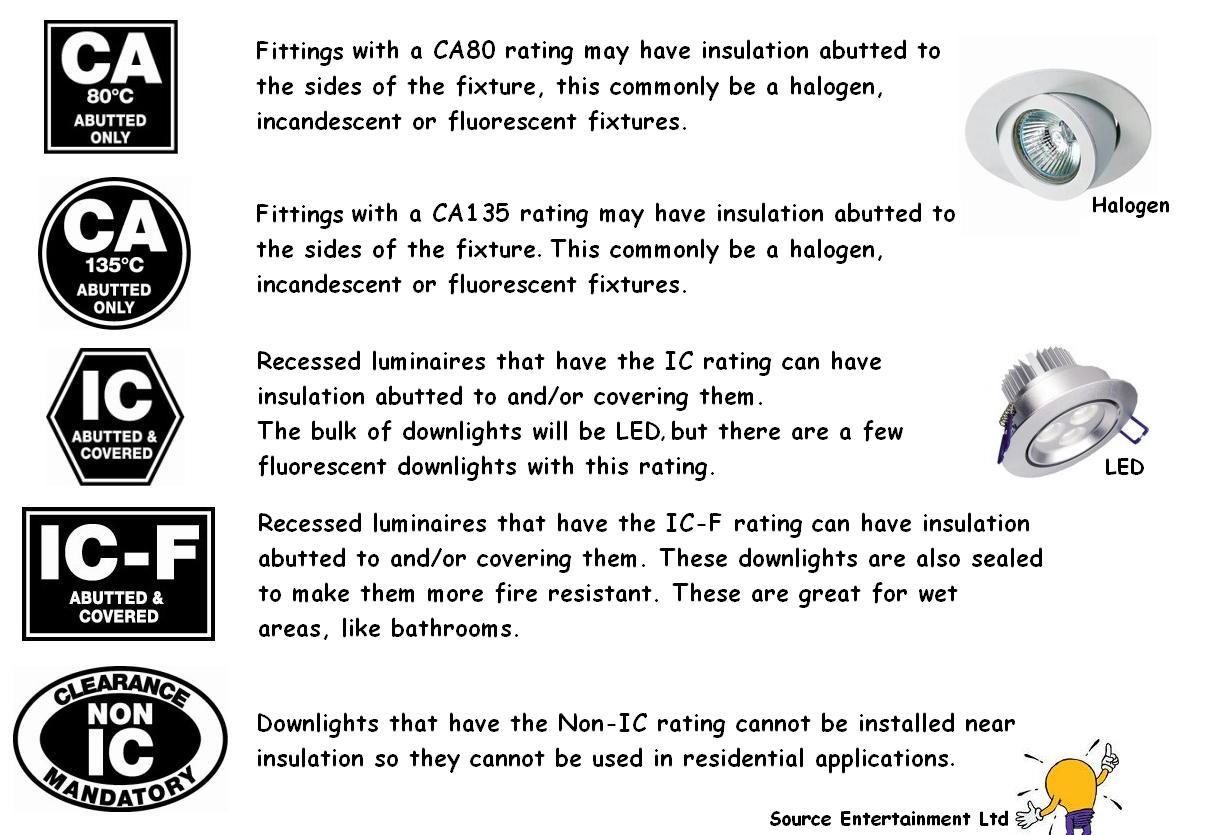

Recessed Down-light CA Ratings

Recessed luminaries that have the Non-IC rating cannot be installed near insulation therefor cannot be used in residential applications.

Any luminaire that is unmarked is considered to be Non-IC.

It’s important to note that most drivers and transformers must be mounted on top of the insulation. If you are intending to cover your downlights your electrician and builder will need to be involved to ensure correct instalation. Feel free to ask us installation instructions on such downlights.

These are mandatory and they must be adhered to as per the new standards of recessed downlights AS/NZS 60598.2.2

EECA Energywise

Under the “Warm Up New Zealand” Heat Smart Scheme you can receive a 33% or up to $1300.00 Energywise contribution if you’re getting your home re-insulated through an authorised insulation installer.  Please be aware that you may still be left with 100mm cut out clearances around your down lights even if IC approved fittings are used. Most EECA authorised installers will not cover any down lights with insulation.
